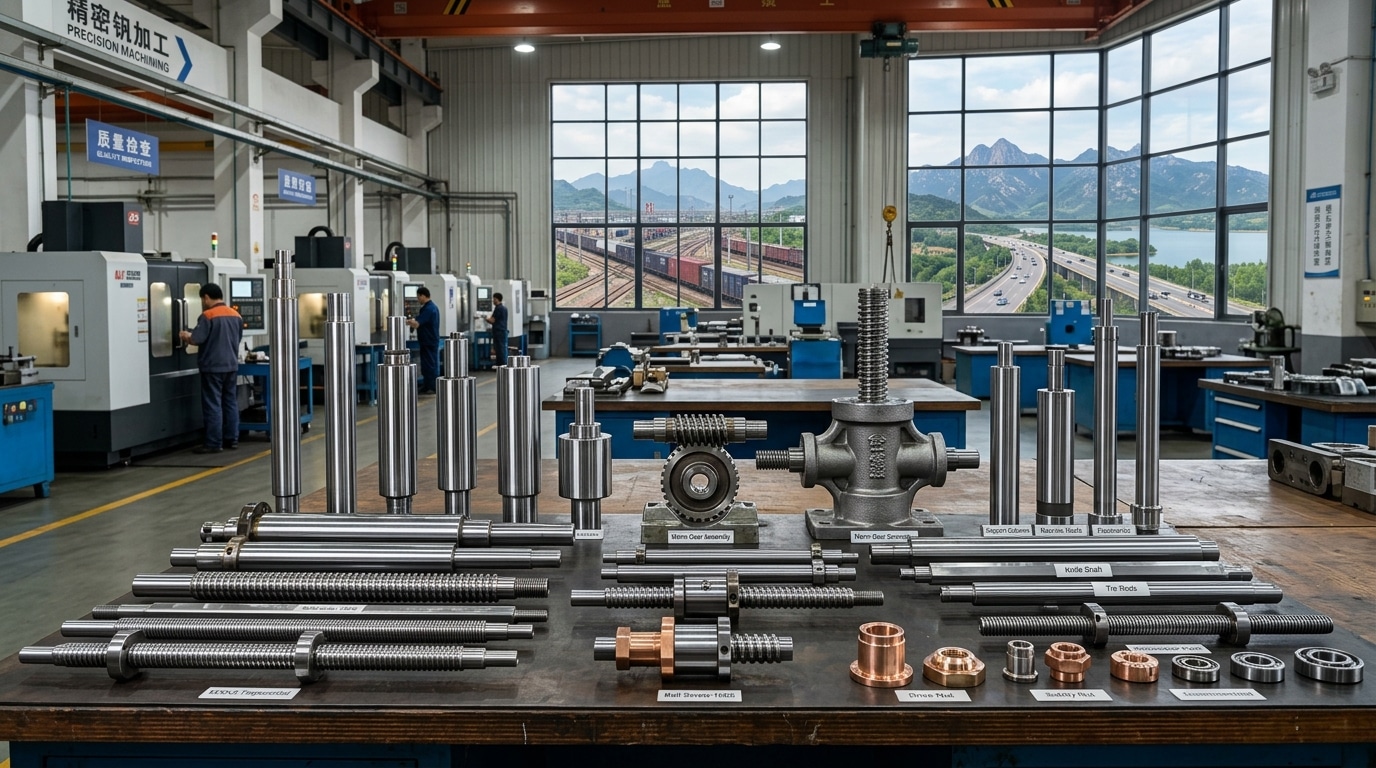

Reliable Trapezoidal Screw Nut Pair for Motion Systems

In the world of mechanical engineering and motion control systems, a Trapezoidal Screw Nut Pair is an essential component that ensures precise linear motion and efficient power transmission. Whether in industrial machinery, automation equipment, or CNC applications, the performance of a Trapezoidal Screw Nut Pair can significantly impact overall system reliability, accuracy, and longevity. Shandong Kaiwo Machinery Co., Ltd. specializes in providing high-quality solutions for these critical components, catering to industries that demand both durability and precision.

Understanding the Trapezoidal Screw Nut Pair

What is a Trapezoidal Screw Nut Pair?

A Trapezoidal Screw Nut Pair consists of a screw (male component) and a corresponding nut (female component) designed with a trapezoidal thread profile. Unlike standard round threads, trapezoidal threads have a distinctive shape with a wider base and slanted sides, providing excellent load-carrying capacity and resistance to wear. This design makes it particularly suitable for heavy-duty linear motion applications.

The screw converts rotational motion into linear motion, while the nut moves along the screw axis, transmitting force with minimal backlash. This makes Trapezoidal Screw Nut Pairs highly efficient for both lifting and positioning tasks in various motion systems.

Key Features

• High Load Capacity: Trapezoidal threads allow the nut to handle greater axial loads compared to other thread types.
• Durability: Materials such as steel, bronze, and engineering plastics extend the lifespan under continuous operation.
• Precision Movement: Minimal backlash ensures smooth, accurate motion for applications like CNC machines or robotics.
• Versatility: Compatible with both manual and motor-driven systems, making it adaptable across industries.

Types of Trapezoidal Screw Nut Pairs

Steel Trapezoidal Screw Nut Pairs

Steel Trapezoidal Screw Nut Pairs are known for their high strength and resistance to deformation. They are commonly used in applications where heavy loads or high mechanical stress is involved, such as in press machines or industrial lifting systems.

Bronze Trapezoidal Screw Nut Pairs

Bronze nuts paired with steel screws offer excellent wear resistance and reduced friction. This combination is ideal for systems requiring smooth motion with minimal maintenance, such as conveyor mechanisms and medical devices.

Plastic Trapezoidal Screw Nut Pairs

Plastic nuts, typically made from high-performance polymers like POM or nylon, are lightweight, corrosion-resistant, and quiet during operation. They are suitable for environments where lubrication is limited or where noise reduction is critical.

Applications of Trapezoidal Screw Nut Pairs

Industrial Machinery

In manufacturing and assembly lines, Trapezoidal Screw Nut Pairs play a crucial role in the linear actuation of heavy machinery. Their ability to handle substantial loads while maintaining precise positioning makes them indispensable for tasks like pressing, clamping, and automated material handling.

CNC Machines

Computer Numerical Control (CNC) machines rely on accurate linear motion for cutting, milling, or engraving. A high-quality Trapezoidal Screw Nut Pair ensures precise tool movement, reducing errors and increasing product quality.

Robotics and Automation

Robots often require compact and reliable linear actuators for movement along different axes. The smooth motion and low backlash of a Trapezoidal Screw Nut Pair make it ideal for robotic arms, pick-and-place machines, and automated assembly systems.

Medical Equipment

In medical devices like imaging systems or surgical robots, precise and stable linear motion is critical. Plastic or low-friction bronze Trapezoidal Screw Nut Pairs provide hygienic, smooth, and maintenance-free operation.

Advantages of Using a Reliable Trapezoidal Screw Nut Pair

Enhanced Accuracy and Precision

The trapezoidal thread profile minimizes backlash and ensures linear motion follows a predictable path. This precision is essential in CNC machining, robotics, and other automated systems where even small errors can result in product defects.

High Load-Bearing Capacity

The broad base of the trapezoidal thread allows the screw and nut to distribute loads evenly, making them suitable for lifting heavy objects or operating under high mechanical stress.

Long Service Life

A well-manufactured Trapezoidal Screw Nut Pair resists wear, corrosion, and deformation. Choosing high-quality materials and proper lubrication can significantly extend its operational life.

Smooth and Efficient Motion

Reduced friction in trapezoidal threads allows for smooth operation, decreasing energy consumption and wear. This improves overall system efficiency and reduces maintenance costs.

Versatility Across Applications

From industrial machinery to precision medical equipment, the Trapezoidal Screw Nut Pair adapts to diverse operational requirements. Its robust design ensures reliable performance across varied environments and load conditions.

Selecting the Right Trapezoidal Screw Nut Pair

Material Considerations

• Steel: High strength, ideal for heavy-duty industrial use.
• Bronze: Excellent wear resistance and smoother motion.
• Plastic: Lightweight, corrosion-resistant, and low-noise for sensitive applications.

Thread Size and Lead

The screw’s diameter and lead (distance moved per turn) directly affect speed, load capacity, and precision. Choosing the right size ensures compatibility with the application’s load and speed requirements.

Lubrication and Maintenance

Although some Trapezoidal Screw Nut Pairs are self-lubricating, regular maintenance ensures longer life and smoother operation. Grease or oil can be applied to reduce friction and wear, particularly in high-load or high-speed applications.

Environmental Factors

Consider operating conditions such as temperature, humidity, chemical exposure, and dust. For corrosive or high-humidity environments, stainless steel or plastic options are preferred. For clean-room or medical applications, low-lubrication plastics may be ideal.

Installation and Operational Guidelines

Proper Alignment

To achieve optimal performance, the screw and nut must be aligned correctly. Misalignment can cause uneven wear, excessive friction, or even premature failure. Precision mounting and careful measurement are essential during installation.

Correct Preload

Applying an appropriate preload on the Trapezoidal Screw Nut Pair minimizes backlash and enhances precision. Too much preload can increase friction, while too little can lead to instability.

Lubrication Practices

Consistent lubrication reduces wear and prevents corrosion. While some bronze or plastic nuts are self-lubricating, steel nuts often require periodic greasing. Using high-quality lubricants compatible with operating temperatures ensures reliable long-term performance.

Monitoring Wear

Regular inspection of the screw and nut threads helps detect early signs of wear or deformation. Timely replacement prevents costly downtime and maintains system accuracy.

Common Challenges and Solutions

Backlash

Backlash occurs when there is free movement between the screw and nut without motion of the load. High-quality trapezoidal threads and proper preload help minimize backlash, maintaining accuracy in critical applications.

Thread Wear

Wear can lead to reduced precision and increased operational noise. Selecting durable materials, maintaining proper lubrication, and avoiding overload can significantly extend thread life.

Misalignment

Improper installation can cause uneven wear or binding. Using precision mounts, alignment tools, and correct assembly procedures ensures smooth and efficient operation.

Environmental Damage

Exposure to dust, moisture, or chemicals can affect performance. Selecting materials resistant to corrosion, and using protective covers or coatings, mitigates environmental risks.

Why Choose Shandong Kaiwo Machinery Co., Ltd.

Shandong Kaiwo Machinery Co., Ltd. is a trusted provider of high-quality Trapezoidal Screw Nut Pairs for various motion systems. Our commitment to precision, durability, and customer satisfaction sets us apart in the industry.

• Expert Engineering: Every product is designed to meet stringent performance standards.
• Wide Range of Options: We offer steel, bronze, and plastic Trapezoidal Screw Nut Pairs for different applications.
• Custom Solutions: Tailored designs to meet unique operational requirements.
• Reliable Support: Technical assistance and guidance throughout the selection and installation process.

By choosing Shandong Kaiwo Machinery Co., Ltd., clients gain access to products that deliver exceptional reliability, smooth motion, and long-term performance.

Conclusion

A Trapezoidal Screw Nut Pair is a cornerstone of any motion system, offering precise linear motion, high load capacity, and long service life. Proper selection, installation, and maintenance are critical to maximizing performance and reliability. From industrial machinery to CNC equipment, robotics, and medical devices, these components ensure smooth, accurate, and efficient operation.
